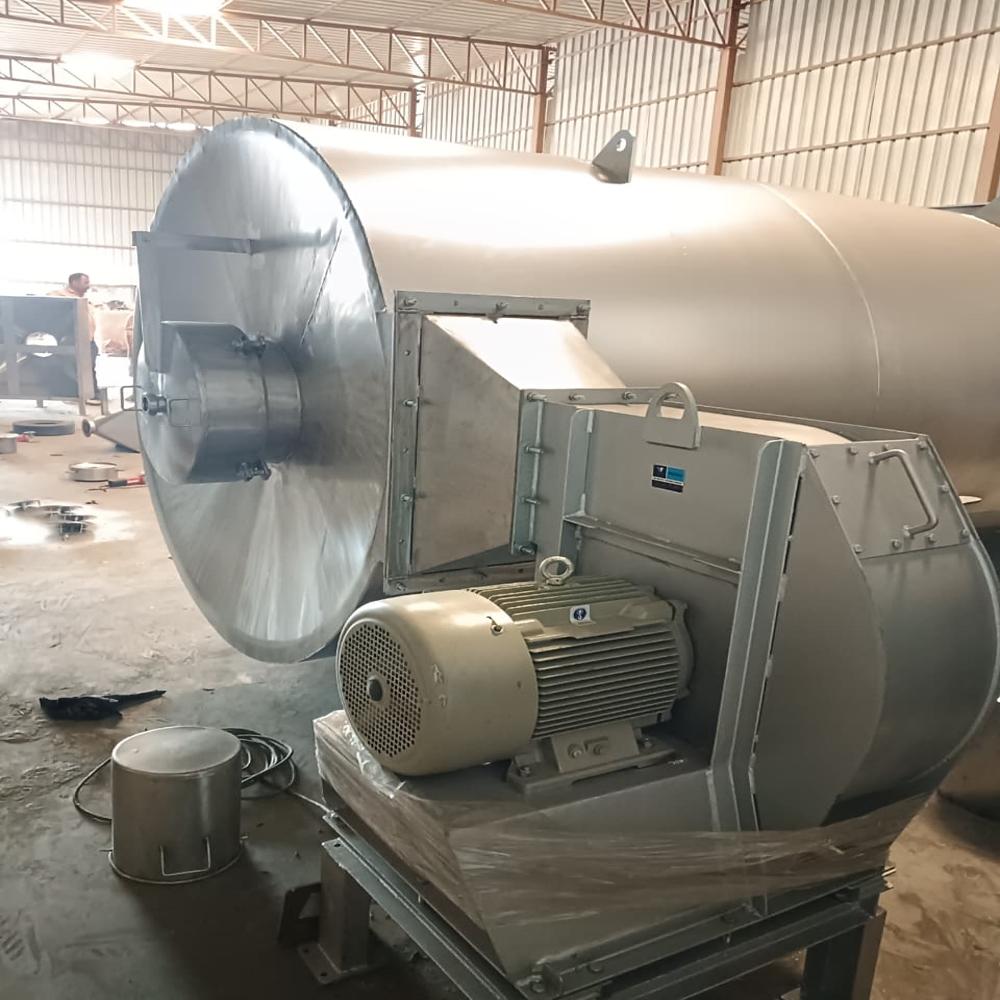

Solid Fuel Fired Hot Air Generator

Name: Solid Fuel Fired Hot Air Generator
Brand: TRINITRON INDPROJECTS
Price: 1750000.0 INR
Availability: InStock

Price 1750000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Solid Fuel Fired Hot Air Generator Specification

Place of Origin
India

Power Output
Hot Air 50,000-5,00,000 Kcal/Hr

Dimension (L*W*H)
Custom/Standard, e.g. 3000 x 1200 x 1800 mm

Temperature
80C to 400C (Adjustable)

Air Flow
Controllable

Noise Level
Below 75 dB

Power Input
3 Phase AC

Drive
Direct & V-Belt Drive

Inlet Oil Content
<5 mg/m3

Inlet Temperature
Ambient

Heating Power
50,000 - 5,00,000 Kcal/Hr

Fan Capacity
1800 - 20000 m3/hr

Pressure
Atmospheric

Power Consumption
3 - 15 kW

Power Mode
Manual/Automatic

Usage
Industrial

Power Source
Electric

Lubrication Type
Splash Lubrication

Product Type
Solid Fuel Fired Hot Air Generator

Voltage
415 V

Color
Blue

Mounting
Horizontal/Vertical

Fuel Consumption
8 - 60 kg/hr, depending on model and fuel type

Combustion Chamber Material
Mild Steel/Alloy Steel refractory lined

Surface Finish
Powder Coated/Heat Resistant Paint

Application
Drying, Curing, Baking, Space Heating, etc.

Heat Exchanger Material
Seamless/ERW Tubes

Chimney
Mild Steel, modular design

Installation
Easy skid-mounted installation

Control Panel
PLC/Standard

Insulation
High Density Mineral Wool Insulation 100 mm

Solid Fuel Fired Hot Air Generator Trade Information

Minimum Order Quantity
1 Number

Supply Ability
100 Per Week

Delivery Time
10-15 Days

About Solid Fuel Fired Hot Air Generator

Industrial Hot Air Generator Fully Automated, High Thermal Efficiency Solid Fuel - Hot Air Generators for your Driers. One Stop Solution for your Hot Air needs. InDepth design knowledge for your thermal plants.

Efficient Industrial Heating Solution

Engineered for industrial use, this hot air generator delivers reliable performance in drying, curing, baking, and space heating. Its fuel-efficient system accommodates a range of solid fuels and operates on a 3-phase electric input, making it suitable for diverse settings. High-density mineral wool insulation and a powder-coated, heat-resistant surface ensure safety and durability.

Advanced Design and Easy Installation

The generator features a refractory-lined combustion chamber, seamless/ERW tube heat exchanger, and a robust mild steel modular chimney. Its skid-mounted, horizontal or vertical configuration simplifies installation, while customizable dimensions adapt to specific site requirements. PLC or standard controls and both manual and automatic power modes offer flexibility for operators.

FAQ's of Solid Fuel Fired Hot Air Generator:

Q: How does the solid fuel fired hot air generator operate?

A: The generator burns solid fuels in a refractory-lined combustion chamber, transferring heat via seamless or ERW tubes to produce hot air. Operation is managed through a PLC or standard control panel, allowing manual or automatic modes, and temperature can be adjusted between 80C and 400C.

Q: What applications are suitable for this hot air generator?

A: This unit is ideal for industrial processes such as drying, curing, baking, and space heating. It efficiently supports facilities requiring controlled hot air output, making it valuable in manufacturing, food processing, textiles, and other sectors.

Q: When should I choose a horizontal versus vertical model?

A: Horizontal models are often preferred when space allows and easy maintenance access is needed, while vertical configurations are ideal for compact sites where floor space is limited. Selection depends on installation area and process requirements.

Q: Where can the hot air generator be installed?

A: Its customizable, skid-mounted design allows installation in a wide range of industrial environments, both indoors or outdoors, provided there is an adequate solid fuel supply, ventilation, and safe power connection.

Q: What is the installation process for this hot air generator?

A: Installation involves placing the skid-mounted unit at the site, connecting fuel feed systems, providing electrical supply (3-phase, 415V), and attaching the modular chimney. Minimal site work and its plug-and-play design ensure quick, straightforward setup.

Q: How does the generator benefit industrial operations?

A: The generator offers reliable and efficient heating with low noise levels, adjustable temperature, and significant energy savings. Its robust build, high-density insulation, and flexible controls improve operational safety and reduce downtime for maintenance.
